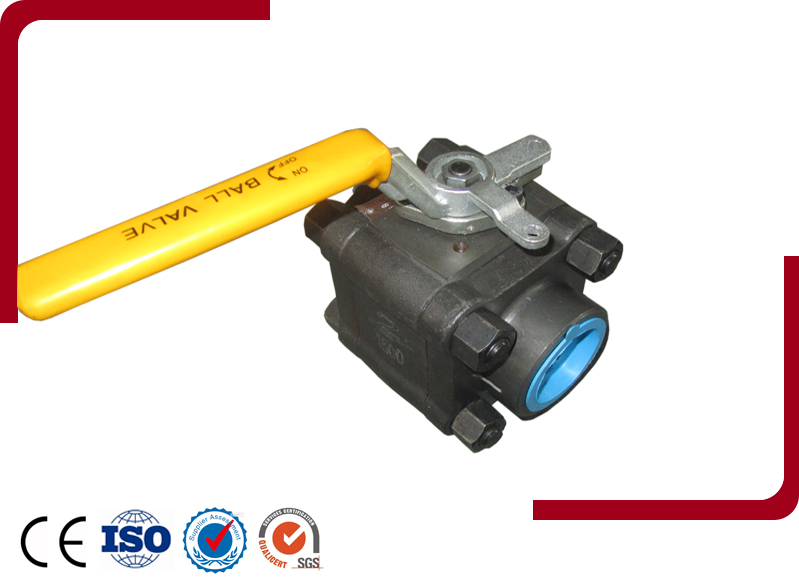

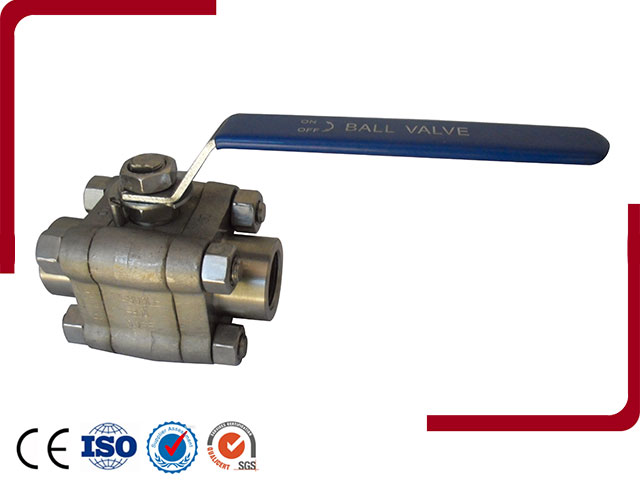

3PCS Forged Steel Ball Valve

MAIN FEATURES:

Principle of the forged steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.

Main Parameter Specification

Design and manufacture conform to BS5351,MSS SP-118

Connection ends conform to:

1.Socket welded ends conform to ANSI B16.11,JB/T1751

2.Screw ends conform to ANSI B1.20.1,JB/T7306

3.Butt-welded ends conform to ANSI B16.25,JB/T12224

Test and inspection conform to :API 598,GB/T13927,JB/T9092

Structure features:Bolted bonnet,three-pieces

Product Range

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter:1/2"～2"（DN15~DN50）

End Connection: BW,THR,SW

Pressure range: Class150~2500（PN16~PN420）

Working temperature: -46℃~+200℃

Operation : Handle
