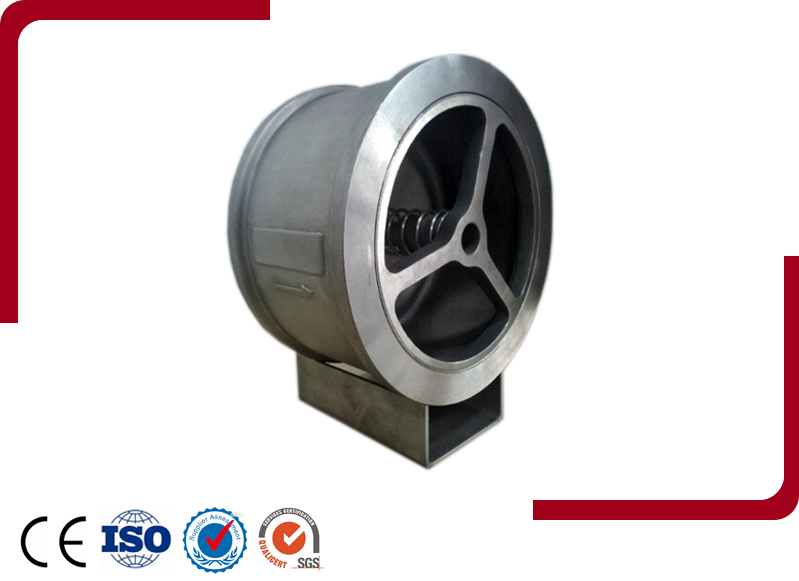

Disco Check Valve

Structural Feature

Short structural length,only 1/4~1/8 of that of traditional flanged check valve;

Low volume,light weight,only 1/4~1/20 of those of traditional flanged check valve;

Quick valve disc closedown,low water hammer pressure;

Applicable for and easily installed for vertical or horizontal pipelines;

Smooth flow passageway and small fluid resistance;

Flexible action and good sealing performance;

Narrow valve travel and small closedown impact;

Integrated structure,simple and compact,in beautiful shape;

Long service life and good reliability.

Main Parameter Specification

Design and manufacture:API594,API 6D,JB/TB8937;
Face to face and end to end:API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
Inspection and test: API598,JB/T9092;
Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.

Product Range

Body material: carbon steel, stainless steel, alloy steel,bronze

Nominal diameter:1/2"~8"(DN15~DN200)

End Connection: RF,RTJ

Pressure range: Class150~900(PN16~PN150)

Working temperature:-196℃~+560℃
