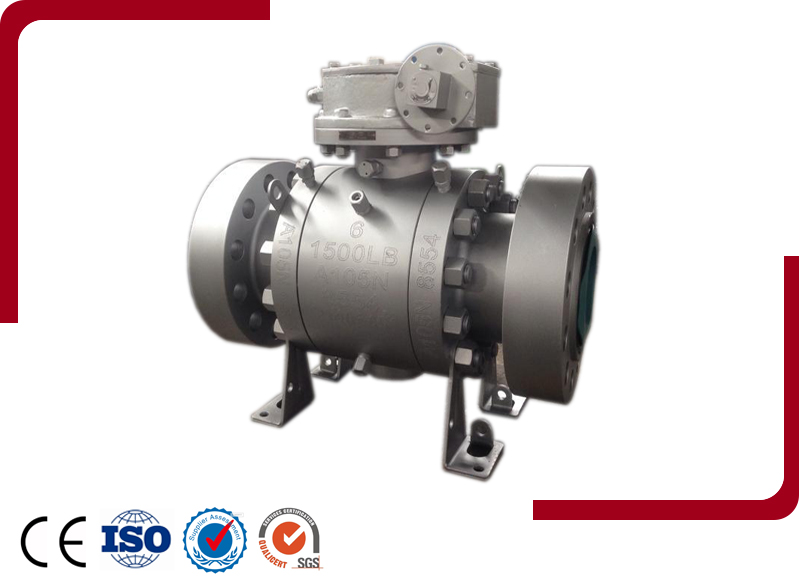

Forged Steel Trunnion Ball Valve

MAIN FEATURES:

The side entry trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium.

Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball’s surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable.

The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.

Main Parameter Specification

Design and Manufacture：API 6D,ASME B16.34(BS5351),API 608,MSS-SP-72

Face to Face Dimension：ASME B16.10,API 6D

Flange Connection Dimension：ASME B 16.5

BW Connection Dimension：ASME B16.25

Test and Inspection：API 598,API 6D

Fire-Safe Design:API 607/6FA

Anti-Static Design&Anti Blow-Out Stem

Product Range

Body material: carbon steel, stainless steel, alloy steel

Full bore and reduced bore design

Nominal diameter:2"~48"(DN15~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150 ~ 2500（PN16~PN420）

Working temperature: -46℃ ~ +200℃

Operation : Handle, Gear, Electric actuator, etc
