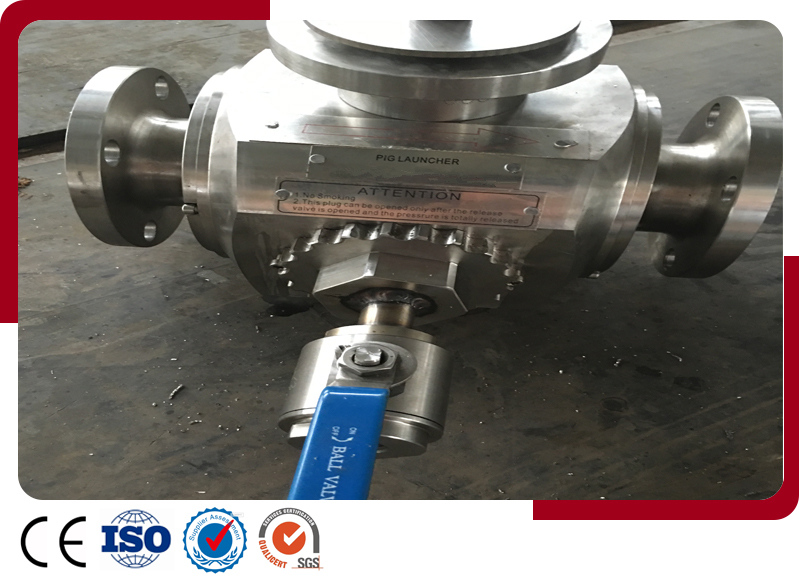

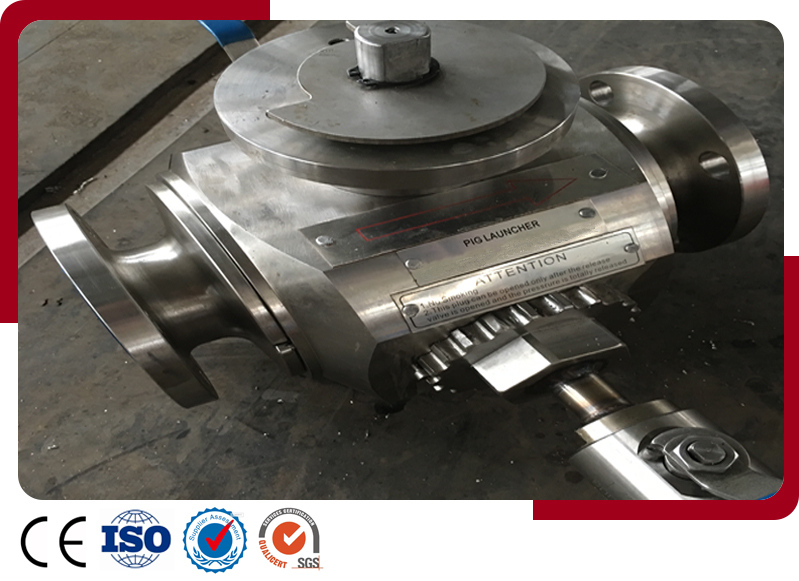

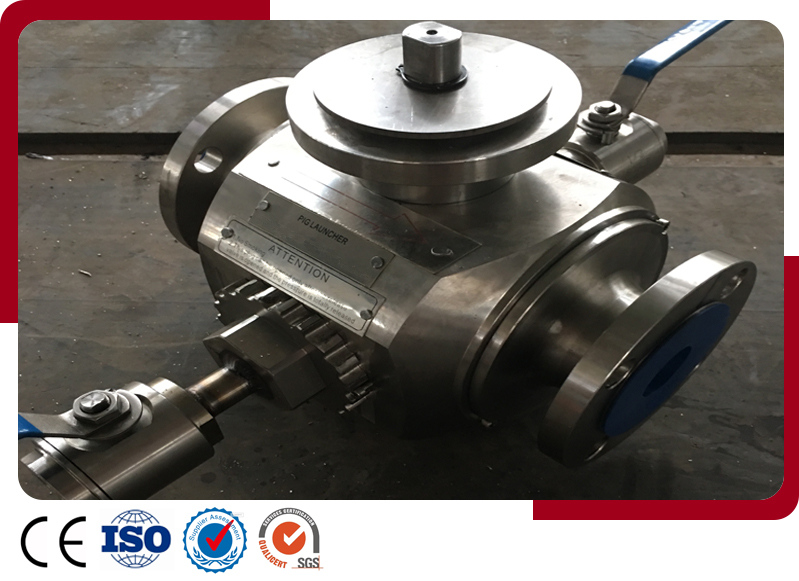

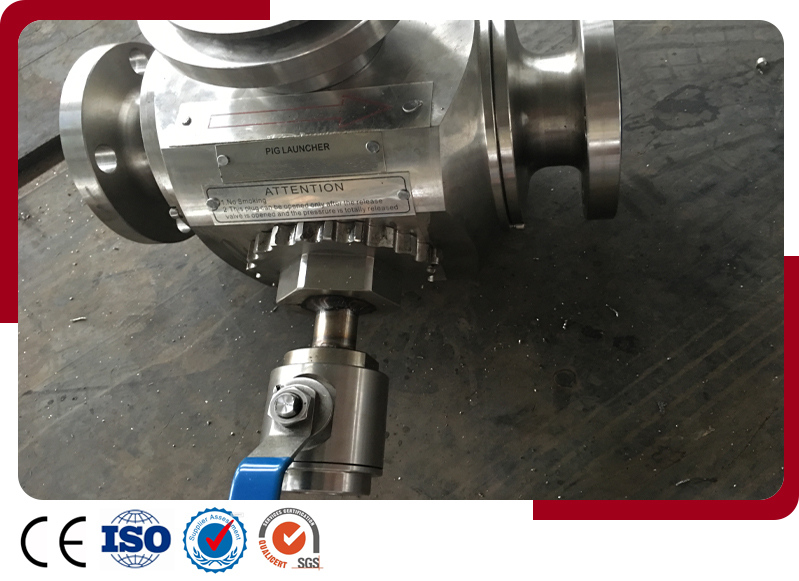

Pig Launcher Valve

Main Features:

Pigging Ball Valve is a new concept for pigging launcher or pigging receiver, mainly used to cleaning pipe in gas gate station, sweeping pipe and cleaning short-distance pipe. Applicable in oil and gas field, oil-gas gathering and transportation, oil-gas storage, chemical terminal, chemical reservoir, off-shore oil platform and other pigging operation in fluid transportation pipelines.
Pigging Ball Valve is the pipeline construction, cleaning, maintenance, testing and management of essential equipment, the use of pigging valve and with the appropriate pipeline pig, Pipeline cleaning, emptying, separating, sequential transportation of medium and inspection can be easily accomplished.
Pigging Valves contain pigging launcher and pigging receiver, they are paired. And by using the compatible pig. pigging valve can completely replace the complex conventional device for launching pig and receiving pig.

Product Range

• Industry Standards: API 6D, ASME B16.34 and API 598

• Size range: 3” and up

• Pressure Classes: ASME 150 – 2500 and API 2000 – 5000

• Temperature range: -50 to 400 deg Fahrenheit

• Materials: LF2, 316 SS, and Exotic Alloys as required

• Seals: HSN, HNBR, James Walker, Viton, Teflon, Devlon Peek or as required

Design Features

• Positive Shut Off with optional By-Pass valving

• Trunnion Block mounted Ball for reduced torque and stem loading

• Large Bearings for smooth robust operation

• Up Stream sealing with automatic downstream cavity relief

• Double Block and Bleed with vent and drain capabilities

• Large button head grease fittings with buried checks

• Emergency seat sealant injection

• Pig Entry Cap with vent and pressure relief safety groove

• Pig Entry Cap with hex drive and spanner drive options

• Open and Closed lockable stop plates 2” – 6”

• 6” and larger utilize a body cavity equalization valve

• Large Actuator Mounting Pads and Stems

• Accepts Long Bullet and Spherical pigs
